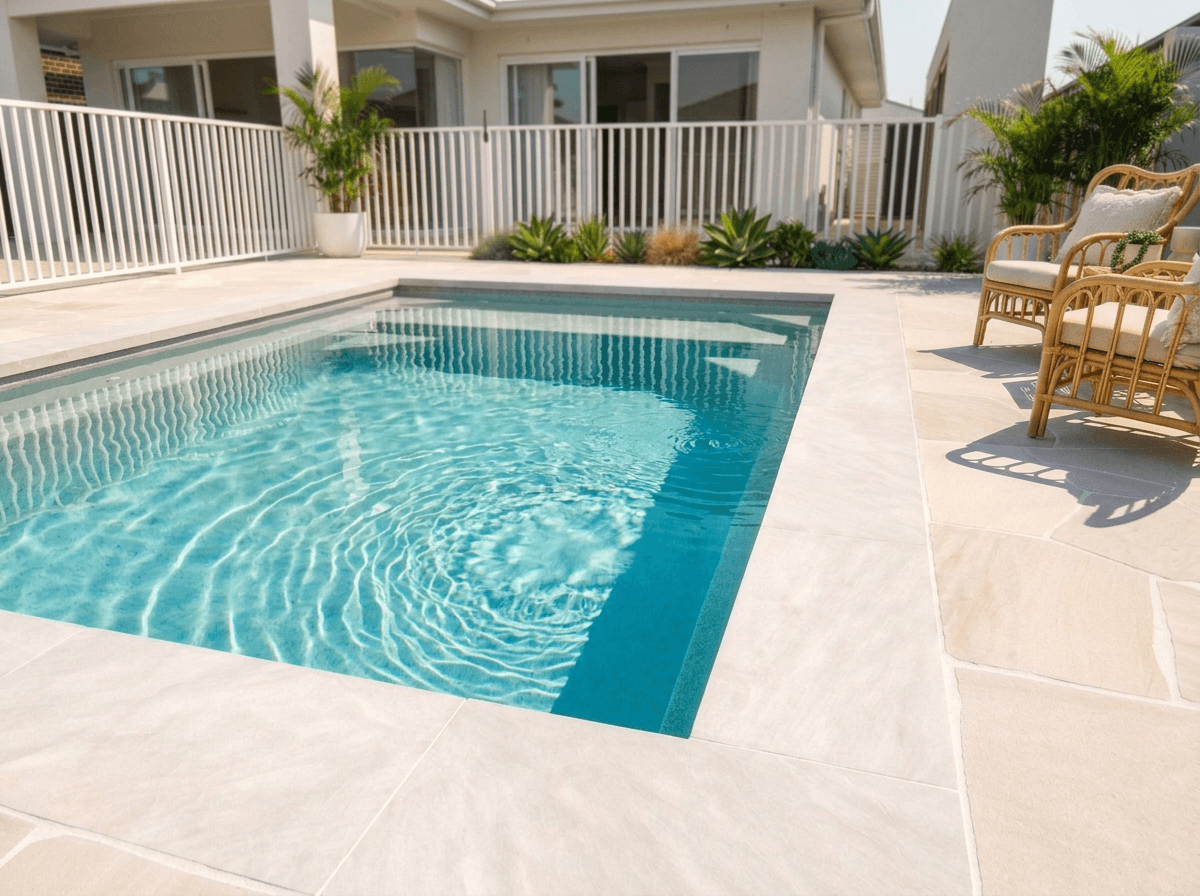

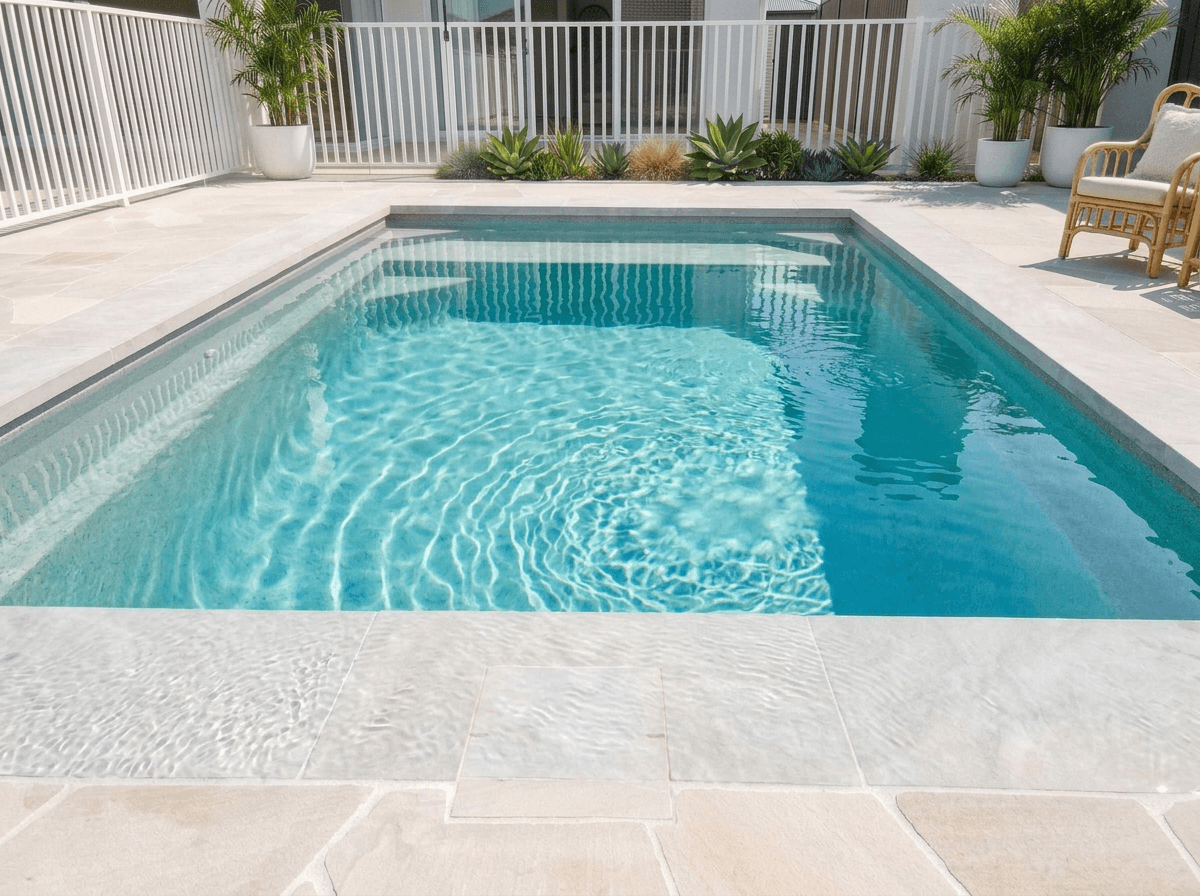

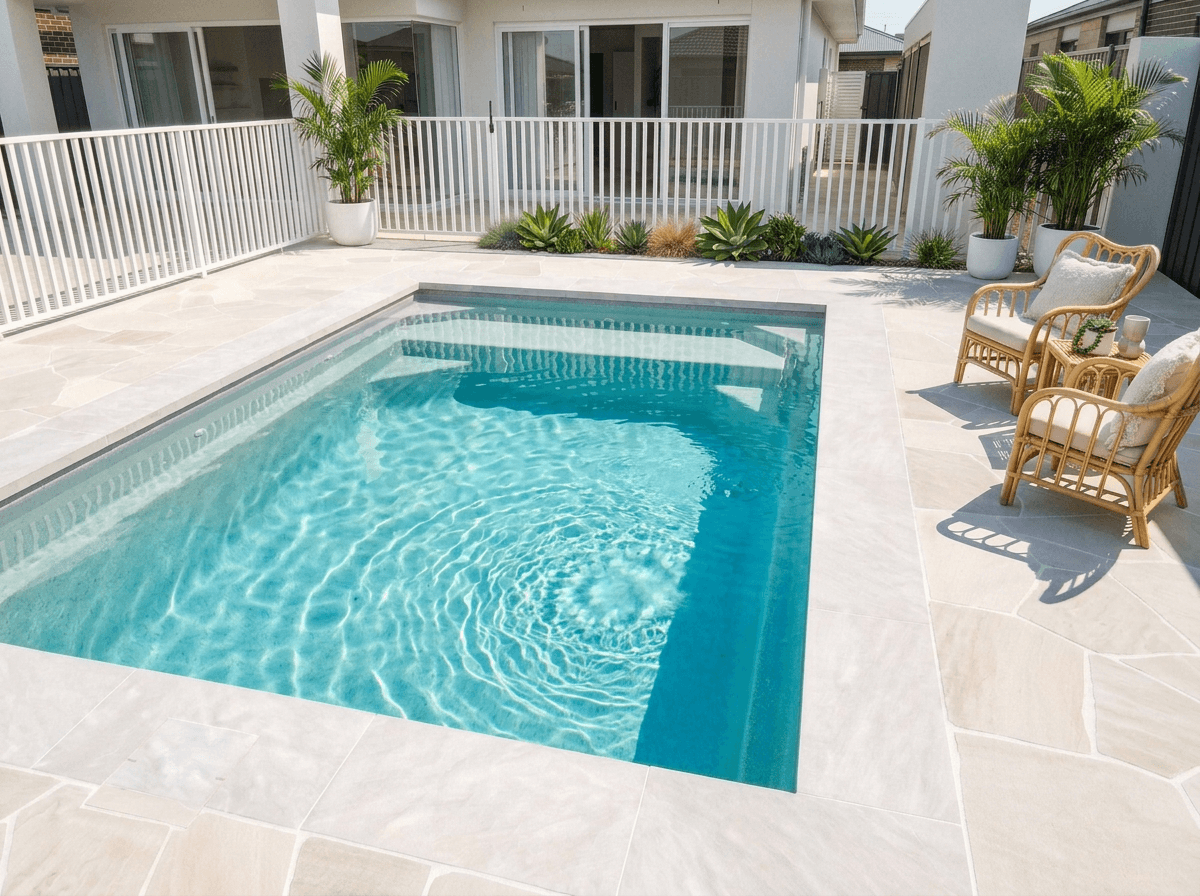

Ultimate Plunge Pool 4.70m x 3.50m

Colour: Beach Shimmer
LENGTH WIDTH FLAT BOTTOM
4.70m 3.50m 1.69m
  • Dimensions are in metres. All measurements are external and approx.
  • Pool Coping is 100mm.
NAME LENGTH WIDTH FLAT BOTTOM
Ultimate Plunge 4.7m 3.5m 1.65m

About the Ultimate Plunge Pool 4.70m x 3.50m

The Ultimate Plunge Pool – Perfect for Small Backyards & Courtyards

As modern homes get bigger and building blocks get smaller, finding the right pool for your outdoor space can be a challenge. The Ultimate Plunge pool is the perfect solution — a compact, stylish design built specifically for smaller backyards, courtyards, and alfresco areas without compromising on quality or functionality.

Sleek, Modern Design

With clean square corners and a constant depth of 1.69m, the Ultimate Plunge pool delivers a sophisticated, concrete-look aesthetic at a fraction of the cost and installation time of a traditional concrete pool. It’s the ideal choice for homeowners who want a contemporary courtyard pool design that still feels custom-built.

Smart Use of Space

Every element of the Ultimate Plunge pool has been designed to maximise your swimming area. Dual entry steps make getting in and out easy, while a compact bench seat built into one end of the pool provides a comfortable spot to relax without eating into valuable swimming space. This clever, space-efficient layout means the Ultimate Plunge pool suits almost any setting — from narrow side yards to compact courtyards.

Built-In Family Safety Features

Safety is just as important as style. The Ultimate Plunge pool features a safety ledge incorporated into the vertical walls around the pool’s perimeter, giving parents a place to sit and relax while keeping a close eye on children as they swim. It’s thoughtful design that gives families genuine peace of mind.

Award-Winning Quality

The Ultimate Plunge pool is part of our range of award-winning pool designs, trusted by homeowners across Perth for quality, durability, and style. Explore our full range of award-winning pools to find the perfect fit for your home.

Fast, Hassle-Free Installation

Unlike traditional concrete pools that can take months to build, Barrier Reef Pools offers a hassle-free installation process for the Ultimate Plunge pool — completed in as little as 7 to 10 days. That means less disruption to your home and more time enjoying quality moments with your family in your very own plunge pool.

Ready to make the most of your small backyard or courtyard? Contact Barrier Reef Pools today to find out more about the Ultimate Plunge pool range.

The Barrier Reef Difference

LIFETIME PAVING GUARANTEE

Pencil Compacting

Pencil compacting is a ‘must do’ around all pools as it is the best way to fully consolidate the excavation area between natural ground and the pool. View our explanation video and you will see that it is just one of the many ways Barrier Reef Pools are superior to others.

Preparation Before Concrete

Timber boxing is formed up around the pool from waters edge 350mm wide. Two rows of N-12 Bar (Reo Bar) are laid between the perimeter of the timber boxing and the pool shell connecting into the pool shell provisions.

Concrete Pour

Concrete is then poured around the pool approx. 350mm wide from waters edge x 150mm deep. The concrete is then screeded to approx 15mm – 20mm  below the top edge of the fibreglass. This footing provides a solid foundation for your pool headers to be fixed to and therefore will not allow any movement in the paving. (Optional 250mm x 150mm is also available).

Paving Bond

As stated to the left concrete is left 15-20mm below the fibreglass edge. This is required so we can use a thick layer of paving bond between the concrete and the paver.
This 4 Step process enables us to provide a Lifetime paving guarantee against any bullnose paving becoming loose around the pool’s edge (the paving company must be accredited through Barrier Reef Pools WA Pty Ltd).

Key Features

See if this pool fits in your backyard!

Simply enter your address in the search bar above, then you can use our intelligent tool to measure any of our pools directly in your property. Get instant results and find your perfect pool.

Find out if a pool will fit your yard with the Can I Build tool
