4.7m x 3.5m

LENGTH WIDTH FLAT BOTTOM
4.7m 3.5m 1.69m
  • Dimensions are in metres. All measurements are external and approx.
  • Pool Coping is 100mm.
NAME LENGTH WIDTH FLAT BOTTOM
Ultimate Plunge 4.7m 3.5m 1.65m

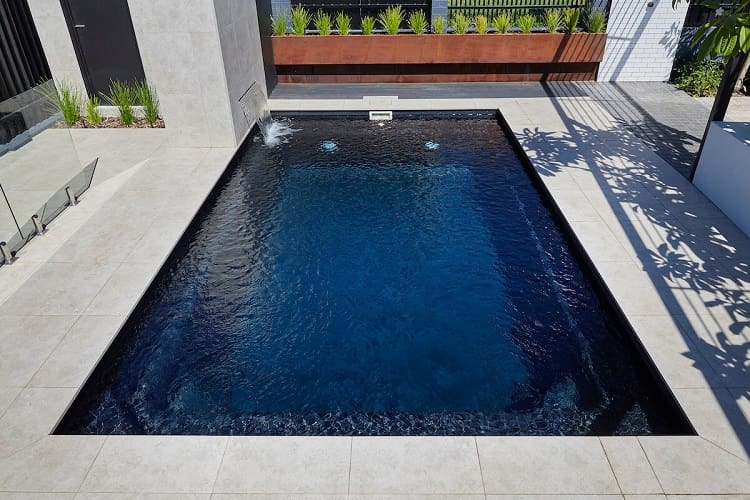

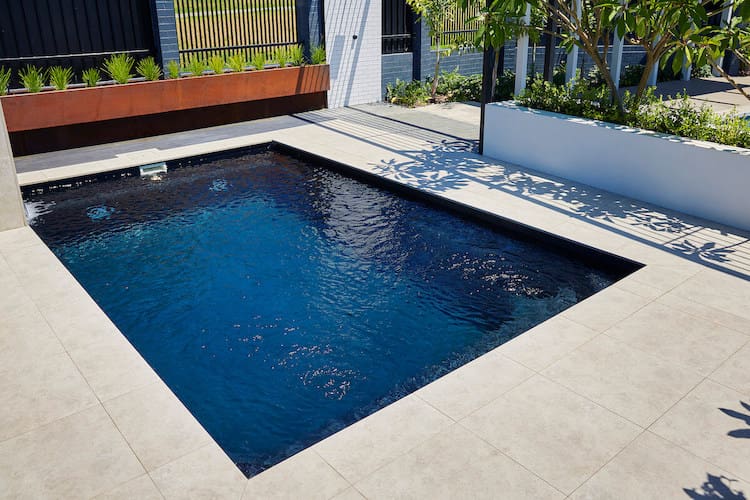

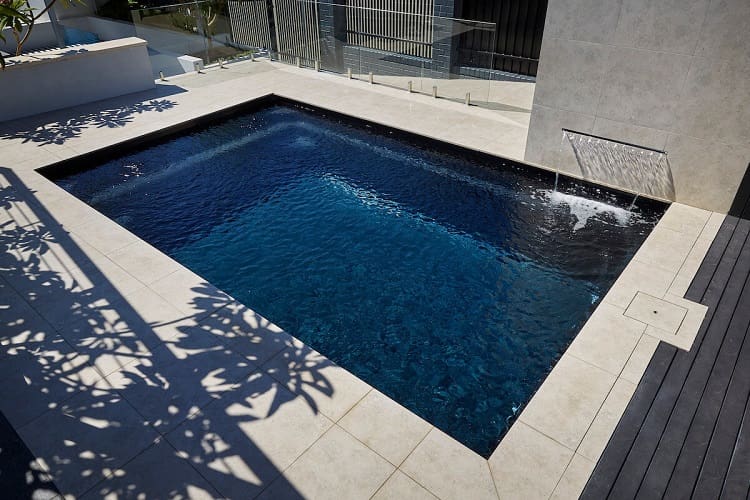

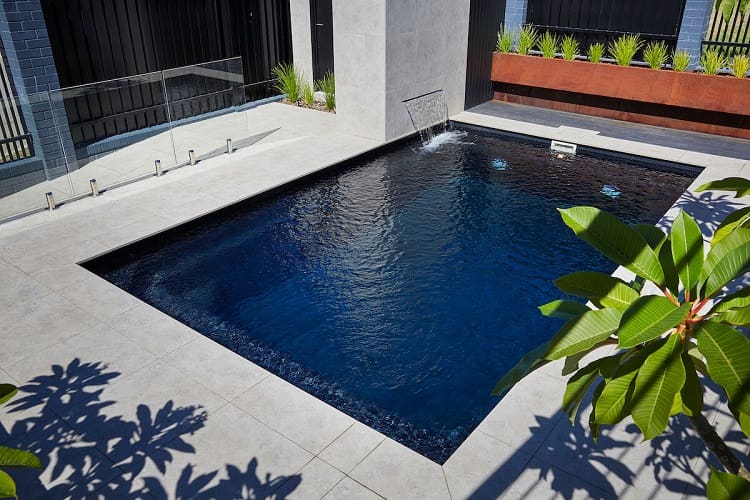

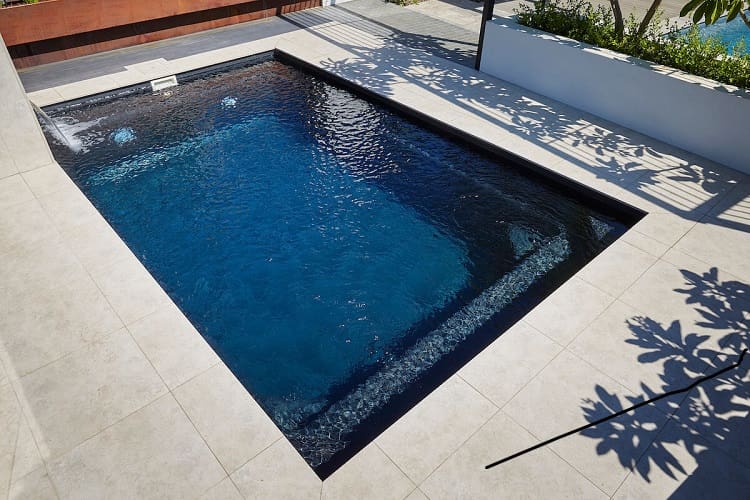

About the 4.7m x 3.5m

The Ultimate Plunge is a specially designed pool that caters to individuals who have limited space but still desire a refreshing and relaxing pool experience. Whether you have a small backyard or simply prefer a compact plunge pool, the Ultimate Plunge offers the perfect solution.

One of the standout features of the Ultimate Plunge is its versatility in terms of placement. Due to its compact size, it can be easily positioned in various areas, even in spaces where larger pools may not fit. This makes it an ideal choice for urban homes, townhouses, or other locations with restricted space. The pool’s size and shape allow for maximum utilization of limited space while providing a cool and refreshing oasis.

The design of the Ultimate Plunge incorporates dual entry steps, enabling convenient access from either side of the pool. This design feature ensures that the pool can be easily accessed and used by multiple people simultaneously. It also adds a touch of aesthetic appeal to the pool, enhancing its overall visual appeal.

The Barrier Reef Difference

LIFETIME PAVING GUARANTEE

Pencil Compacting

Pencil compacting is a ‘must do’ around all pools as it is the best way to fully consolidate the excavation area between natural ground and the pool. View our explanation video and you will see that it is just one of the many ways Barrier Reef Pools are superior to others.

Preparation Before Concrete

Timber boxing is formed up around the pool from waters edge 350mm wide. Two rows of N-12 Bar (Reo Bar) are laid between the perimeter of the timber boxing and the pool shell connecting into the pool shell provisions.

Concrete Pour

Concrete is then poured around the pool approx. 350mm wide from waters edge x 150mm deep. The concrete is then screeded to approx 15mm – 20mm  below the top edge of the fibreglass. This footing provides a solid foundation for your pool headers to be fixed to and therefore will not allow any movement in the paving. (Optional 250mm x 150mm is also available).

Paving Bond

As stated to the left concrete is left 15-20mm below the fibreglass edge. This is required so we can use a thick layer of paving bond between the concrete and the paver.
This 4 Step process enables us to provide a Lifetime paving guarantee against any bullnose paving becoming loose around the pool’s edge (the paving company must be accredited through Barrier Reef Pools WA Pty Ltd).

Key Features

See if this pool fits in your backyard!

Simply enter your address in the search bar above, then you can use our intelligent tool to measure any of our pools directly in your property. Get instant results and find your perfect pool.

Find out if a pool will fit your yard with the Can I Build tool

Pool Colours

Current Selected Colours: Royal Blue Shimmer, Ocean Shimmer

Compare two colours to find your perfect match
