Majestic 9.5m x 4.4m

Colour: Ocean Shimmer
Location: City Beach
LENGTH WIDTH DEEP END SHALLOW END
9.3m 4.2m 1.92m 1.23m
  • Dimensions are in metres. All measurements are internal and approx.
  • Pool Coping is 100mm.
NAME LENGTH WIDTH DEEP END SHALLOW END
Majestic 9.5m 4.4m 1.91m 1.23m

About the Majestic 9.5m x 4.4m

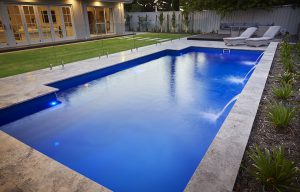

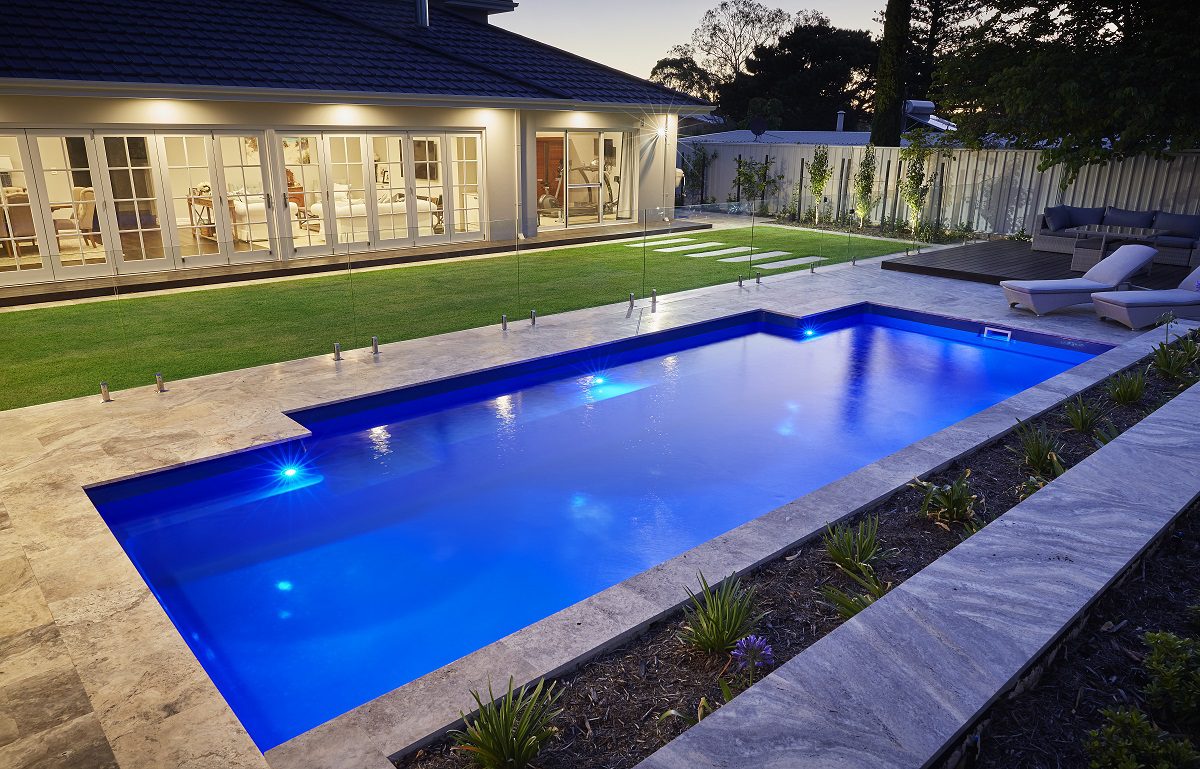

A 9.5m Majestic Ocean Shimmer Built In City Beach

Using premium materials, Barrier Reef Pools has left no stone unturned in creating this majestic swimming pool in City Beach.

Showcasing a raised planter bed water feature and measuring 9.5m-by-4.4m, the pool was completed in four weeks. With the homeowners deciding to utilise the services of Barrier Reef Pools during their home build based on the recommendations of neighbours, the entire backyard was created and designed to match the elegance of the pool, which varies in depth from 1.2m at the shallow end to 1.9m at its deepest point.

“We were involved with the owners at the planning stage of the house to ensure the pool was perfectly sized and placed and all bases were covered in terms of placement of the pool and fencing in relation to the overall house design,” Barrier Reef Pools Managing Director Steve Patterson said.

The fibreglass pool utilises a large step area that is perfect for a gradual descent into the water as well as a child’s safety step, which spans the entire perimeter of the space.

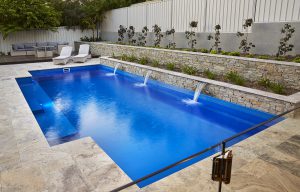

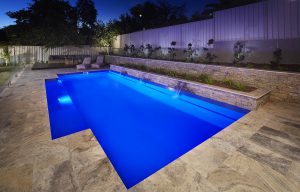

Three water blades feed into the pool and Mr Patterson said this formed part of the best aspect of the whole area, making the pool as useful in design as it is practical.

“The water feature serves to break up the existing stark rear retaining wall and soften the backdrop of the pool,” he said. “It is also fully supported by our unique concrete bond beam on the edge of the pool, which is 350mm wide and 150mm deep.

“All Barrier Reef pools are installed with a concrete bond beam which allows our clients to construct water features, or other structures, right on the pool’s edge.”

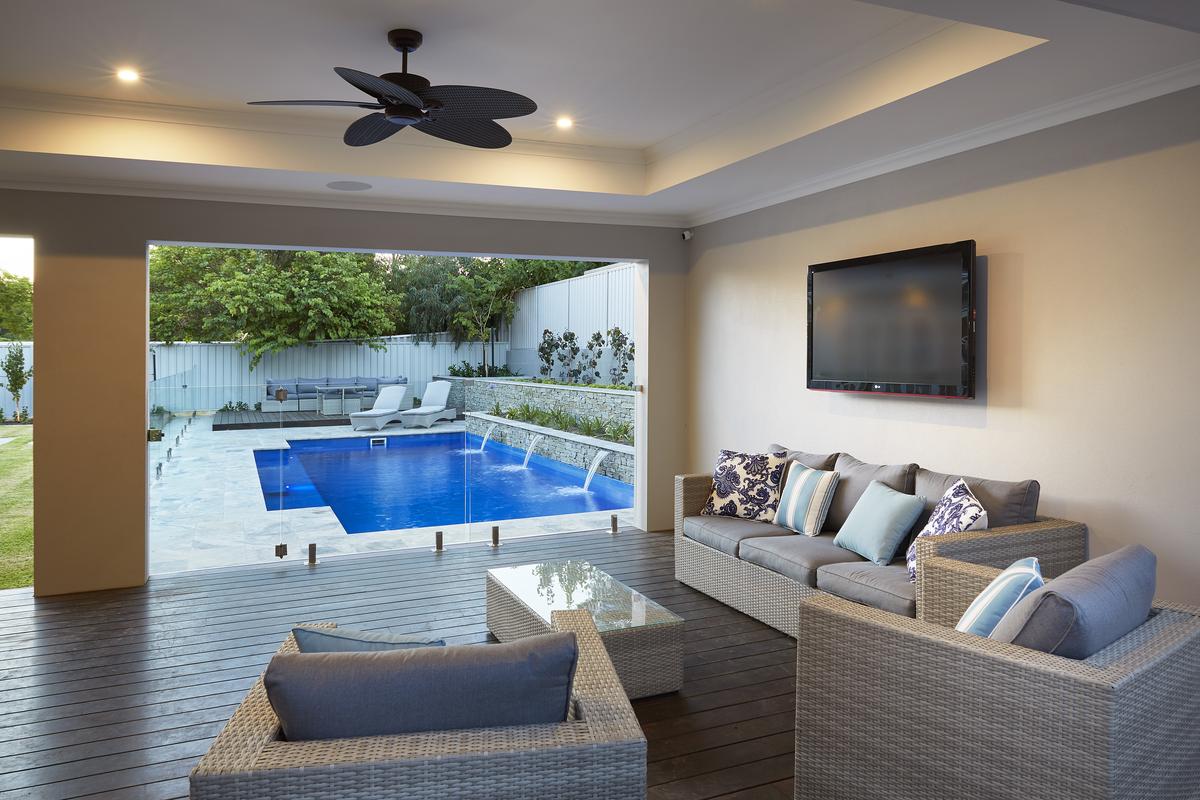

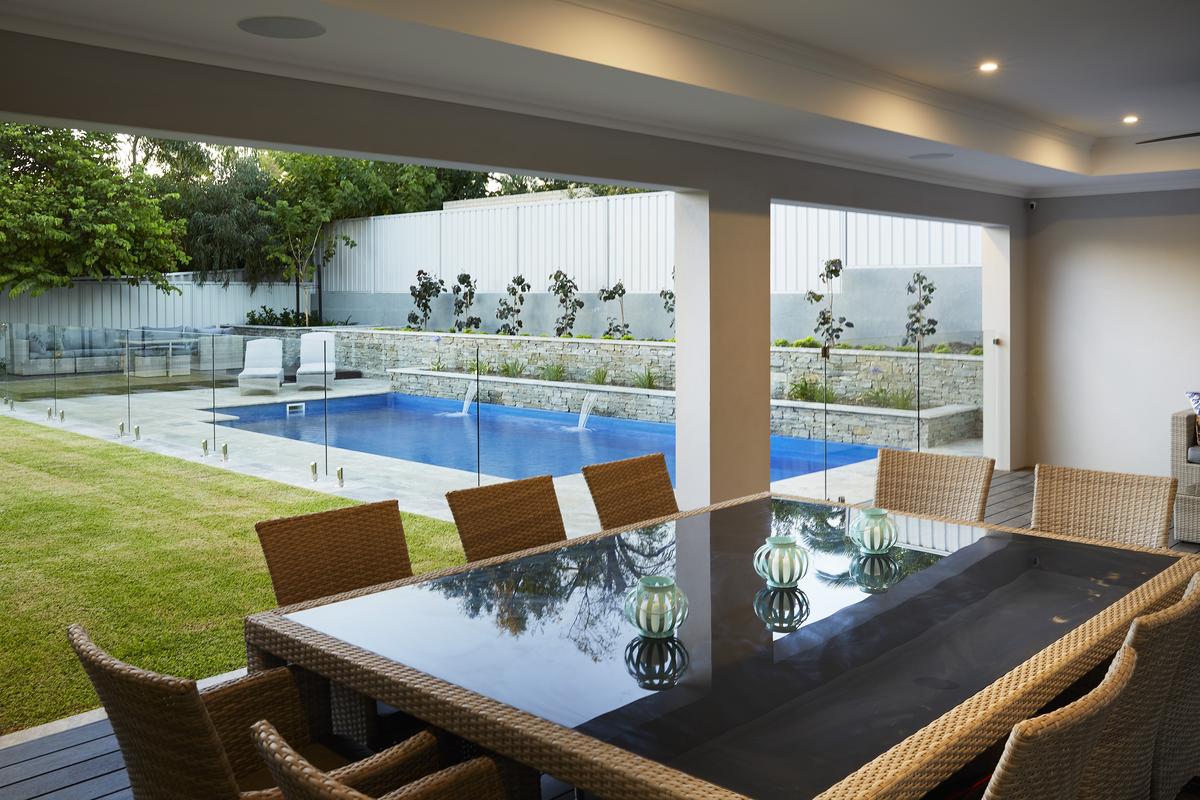

Being overlooked by the alfresco and living areas of the home, the choice of colours is a subtle, yet elegant nod to the grace on show with this space.

The colours used for the pool area blend beautifully in with the light coloured walls of the home. A raised deck area sits alongside the pool and provides the ideal space to sit back, relax and fully enjoy the beautiful garden as a whole.

The finished result is a bounteous display of what can be completed in a short space of time with expert guidance and builders at the helm.

The Barrier Reef Difference

LIFETIME PAVING GUARANTEE

Pencil Compacting

Pencil compacting is a ‘must do’ around all pools as it is the best way to fully consolidate the excavation area between natural ground and the pool. View our explanation video and you will see that it is just one of the many ways Barrier Reef Pools are superior to others.

Preparation Before Concrete

Timber boxing is formed up around the pool from waters edge 350mm wide. Two rows of N-12 Bar (Reo Bar) are laid between the perimeter of the timber boxing and the pool shell connecting into the pool shell provisions.

Concrete Pour

Concrete is then poured around the pool approx. 350mm wide from waters edge x 150mm deep. The concrete is then screeded to approx 15mm – 20mm  below the top edge of the fibreglass. This footing provides a solid foundation for your pool headers to be fixed to and therefore will not allow any movement in the paving. (Optional 250mm x 150mm is also available).

Paving Bond

As stated to the left concrete is left 15-20mm below the fibreglass edge. This is required so we can use a thick layer of paving bond between the concrete and the paver.
This 4 Step process enables us to provide a Lifetime paving guarantee against any bullnose paving becoming loose around the pool’s edge (the paving company must be accredited through Barrier Reef Pools WA Pty Ltd).

Key Features

  • Generous Bench Seating

    Enjoy a little more relaxation room with a larger bench seating area.

  • Optional Spa Jets

    Optional jets may be available to seating/spa areas as an upgrade. Check with our team for details.

  • Wide Entry Steps

    A grand entry stairway that doubles as generous seating without intruding on the swim area.

See if this pool fits in your backyard!

Simply enter your address in the search bar above, then you can use our intelligent tool to measure any of our pools directly in your property. Get instant results and find your perfect pool.

Find out if a pool will fit your yard with the Can I Build tool

Pool Colours

Current Selected Colours: Royal Blue Shimmer, Ocean Shimmer

Compare two colours to find your perfect match
