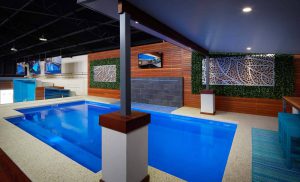

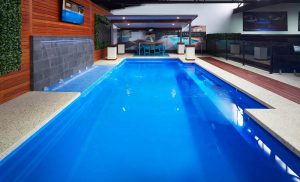

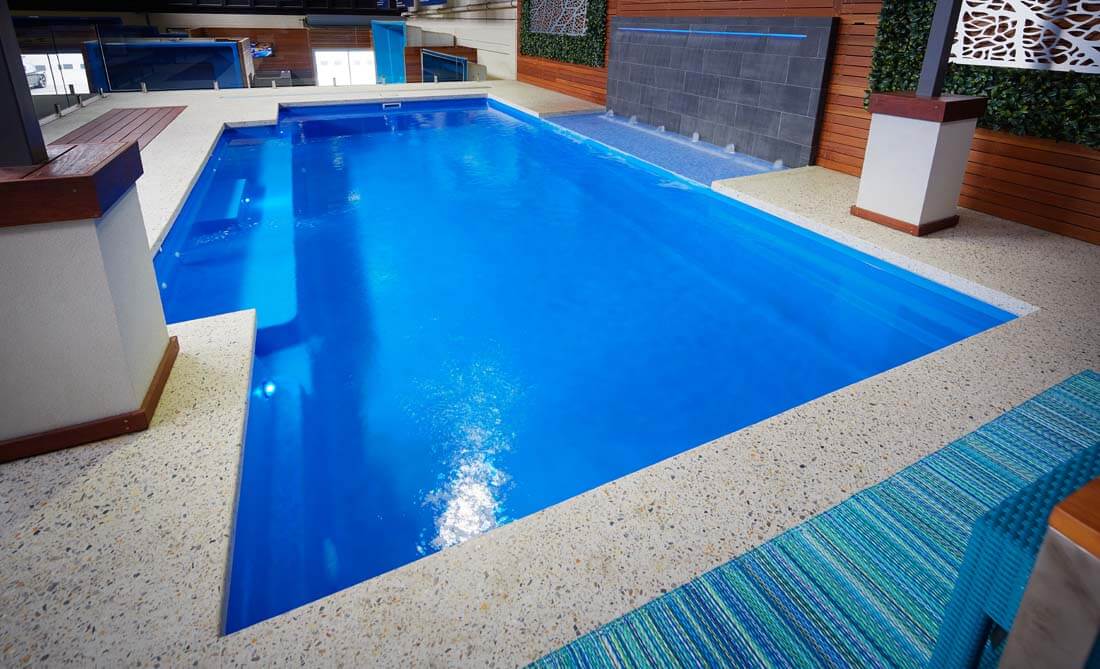

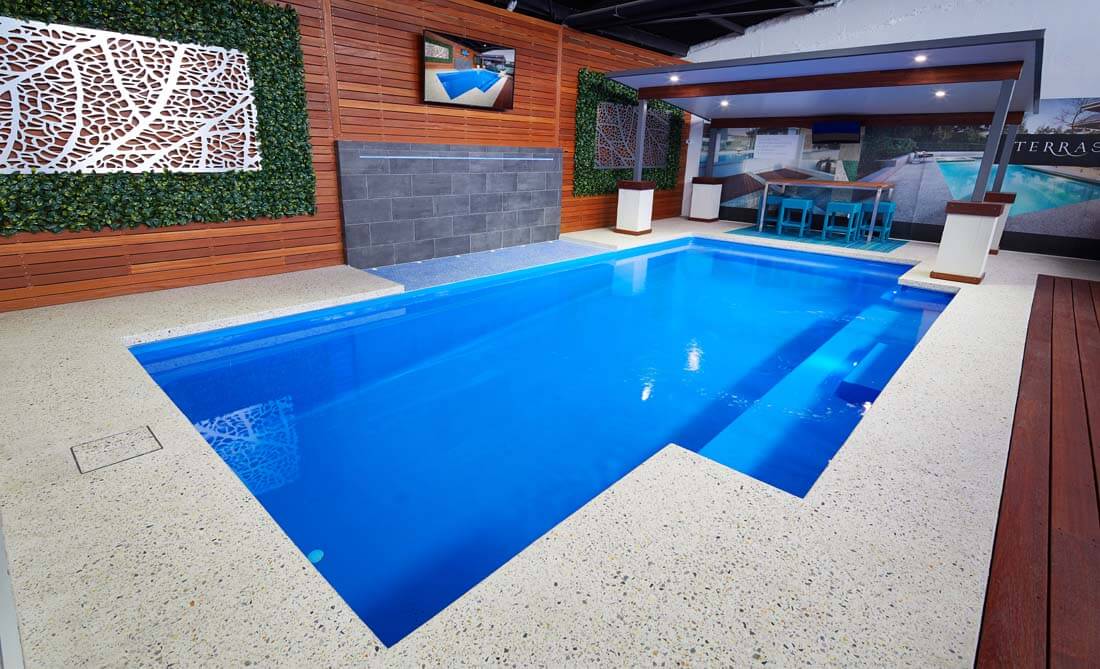

A prime example of the lengths that the Barrier Reef Pools team will go to in ensuring a perfect finish, this Majestic pool installed in our O’Connor display centre presented many challenges due to restricted access.
Complete with a mosaic sunbed and two 1200m LED rain effect water blades that create a stunning waterfall over a Bluestone-clad feature, it was well worth the effort.
To squeeze the pool in to the warehouse, a portion of the brick wall had to be removed, followed by the use of a small crane before it was placed inside a retaining wall.
Finished in the shade of Pacific Shimmer and with three LED lights, the pool is a stunning contrast to the surrounding Terrastone exposed poured concrete and matching skimmer box lid. Timber decking, screening and the sunwise patio add further interest with a range of material and texture.
A prime example of the lengths that the Barrier Reef Pools team will go to in ensuring a perfect finish, this Majestic pool installed in our O’Connor display centre presented many challenges due to restricted access.
Complete with a mosaic sunbed and two 1200m LED rain effect water blades that create a stunning waterfall over a Bluestone-clad feature, it was well worth the effort.
To squeeze the pool in to the warehouse, a portion of the brick wall had to be removed, followed by the use of a small crane before it was placed inside a retaining wall.
Finished in the shade of Pacific Shimmer and with three LED lights, the pool is a stunning contrast to the surrounding Terrastone exposed poured concrete and matching skimmer box lid. Timber decking, screening and the sunwise patio add further interest with a range of material and texture.
Pencil compacting is a ‘must do’ around all pools as it is the best way to fully consolidate the excavation area between natural ground and the pool. View our explanation video and you will see that it is just one of the many ways Barrier Reef Pools are superior to others.
Timber boxing is formed up around the pool from waters edge 350mm wide. Two rows of N-12 Bar (Reo Bar) are laid between the perimeter of the timber boxing and the pool shell connecting into the pool shell provisions.
Concrete is then poured around the pool approx. 350mm wide from waters edge x 150mm deep. The concrete is then screeded to approx 15mm – 20mm below the top edge of the fibreglass. This footing provides a solid foundation for your pool headers to be fixed to and therefore will not allow any movement in the paving. (Optional 250mm x 150mm is also available).
As stated to the left concrete is left 15-20mm below the fibreglass edge. This is required so we can use a thick layer of paving bond between the concrete and the paver. This 4 Step process enables us to provide a Lifetime paving guarantee against any bullnose paving becoming loose around the pool’s edge (the paving company must be accredited through Barrier Reef Pools WA Pty Ltd).
Simply enter your address in the search bar above, then you can use our intelligent tool to measure any of our pools directly in your property. Get instant results and find your perfect pool.
Use the colour swatches below to view and compare our range of premium colours available.
With three display centres around Perth, there is always someone close by to answer any questions you have on our fibreglass pools and to show you our extensive range of pools.
